Frida

A JavaScript tool to interact with running Android applications through code

Installation

Frida has two parts, a server and a client. The server runs on the device, and clients connect to it.

Warning: Using the latest Android API versions can be unstable because Frida may not support them. I've personally noticed version 34 working well, and later versions causing segfaults.

For a lot of features, the server binary from the Releases is required. It's a large list so Show all assets and search for frida-server-*-android-x86_64.xz or any other architecture depending on your device (check adb shell getprop ro.product.cpu.abi). Then push the extracted file to your device inside some temporary directory and run it:

adb push frida-server-*-android-x86_64 /data/local/tmp/frida-server
adb shell chmod +x /data/local/tmp/frida-server
adb shell /data/local/tmp/frida-server

Make sure your device is rooted before attempting to run frida-server, otherwise, you will receive the following error:

$ adb shell /data/local/tmp/frida-server
Unable to load SELinux policy from the kernel: Failed to open file ?/sys/fs/selinux/policy?: Permission denied

Simply use ADB to get a root shell and try again:

adb root

Now, on your host system you should install the client CLI in the form of a Python library:

pip install frida

Commands like frida, frida-ps and frida-trace should now become available in your shell.

Tracing

The -U flag should be added to all commands because it will use the Android bridge, otherwise you will act on your host system. The simplest command is listing processes with frida-ps:

List Processes

$ frida-ps -Ua
 PID  Name         Identifier
----  -----------  ---------------------------------------
5852  Chrome       com.android.chrome
1861  Google       com.google.android.googlequicksearchbox
1861  Google       com.google.android.googlequicksearchbox
1694  Messages     com.google.android.apps.messaging
1053  SIM Toolkit  com.android.stk
1056  Settings     com.android.settings

You can choose any application Identifier and pass it via -N to attach frida-trace to it (server must be running):

Trace specific application

frida-trace -U -N com.android.chrome

If the target application is the one in the foreground, you'll be easier off using just -F to automatically select it:

Trace foreground app

frida-trace -U -F

Both start a localhost server on a random port which you can visit in your browser. The UI isn't very intuitive, but there's only a few useful features you will use.

Logging calls

What this tool is really made for is logging calls to functions or methods while the application is running by inserting hooks. You can add one using the button and choose a type on the right dropdown. For example, if you have an application with some method in a class defined in Java that you want to investigate, choose Java Method. The syntax template tells you to input [Module!]Function, this accepts wildcards, so to target a method named decrypt in any class use *!decrypt (it should give auto-completion results to choose from).

From the command-line you can also quickly set up a default hook like this (-j = Java Methods, -i for native functions):

$ frida-trace -U -F -j '*!decrypt'
Instrumenting...
MainActivity.decrypt: Auto-generated handler at "C:\...\decrypt.js"
Started tracing 1 function. Web UI available at http://localhost:2762/

This will generate a simple handler similar to the following that logs all arguments and the return value:

decrypt.js

defineHandler({
  onEnter(log, args, state) {
    log(`MainActivity.decrypt(${args.map(JSON.stringify).join(', ')})`);
  },

  onLeave(log, retval, state) {
    if (retval !== undefined) {
      log(`<= ${JSON.stringify(retval)}`);
    }
  }
});

Press to run the code (from then on, Ctrl+S reloads your changes). This should log all future calls to the method in question:

Log

69887 ms  MainActivity.decrypt("test")
69901 ms  <= false

You write all logic using the JavaScript API which has a subset of JavaScript's language features.

Native Functions

Native functions are defined in .so binaries in the lib/ folder, you should use binary Reverse Engineering tools to analyze them. Then, you may find custom functions or even library functions of interest which you want to log the arguments/memory of. While possible to do manually in GDB, the easiest way is by setting a hook with Frida:

frida-trace -U -F -i '*!memcpy'

This sets a very generic hook for every time memcpy() is called, likely creating way too much spam from random invocations. To focus on a specific place in the code you find, you can look at the return address of the call when you intercept it, and then decide wether or not to log it.

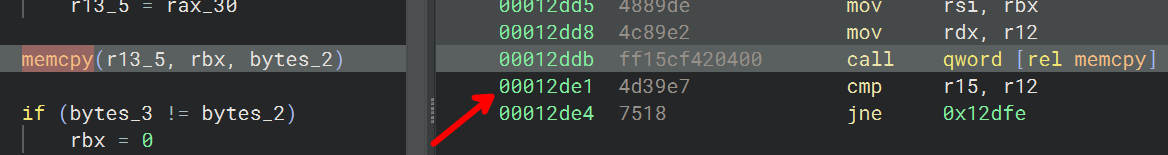

Inside your decompiler/disassembler, look at the call to your function of interest, and note down the address of the next instruction. This will be the return address we're looking for while inside the call. In the following code this would be 0x12de1, for example:

We will define a hook for *!memcpy and check if this.returnAddress ends with the same 3 hex digits (because address space shifting happens in increments of 0x1000). Only if this is true, is the call likely what we need. In the case for this memcpy() call, we can read the manpage to learn that its first argument should be the destination, the second argument the source and the third argument the number of bytes to copy.

Because the args array will only contain pointers for native code, we can alter it to read the given amount of bytes from the source pointer as a string and print it, to see what string will be copied to the destination.

memcpy.js

defineHandler({
  onEnter(log, args, state) {
    if (this.returnAddress.and(0xfff).equals(0x00012de1 & 0xfff)) {
      const dst = args[0];
      const src = args[1];
      const size = args[2].toInt32();
      const src_str = src.readUtf8String(size);

      log(`memcpy(${dst}, ${JSON.stringify(src_str)}, ${size})`);
    }
  },
});

Log

238365 ms  memcpy(0x743cd947ab90, "super secret password", 21)

Scripts

Instead of analyzing an application that is already running, scripts allow you to automate any JavaScript code from the start of an application. You can run a saved script as follows:

frida -U -f com.example.app -l script.js

-U means connect to USB device (ADB)

-f means start app with this name

-l means run this script on launch

Alternatively, you can also do the same from Python:

Python Script Template

Requirements

pip install frida

Python

import frida
import frida_tools
import os

APP = "com.example.app"

# Put any JavaScript in the string below
script = """
...
"""

def main():
    try:
        device = frida.get_usb_device()
        pid = device.spawn([APP])
        session = device.attach(pid)
        script_instance = session.create_script(script)
        script_instance.load()
        device.resume(pid)
        print(f"Script injected into {APP}.")
    except Exception as e:
        print(f"Error: {e}")

if __name__ == "__main__":
    main()
    input("Press Enter to exit...")  # Keep the script running until user input

From here, the functionality is very similar to Tracing. But instead of logging values, this is more useful for altering the functionality of apps. You can overwrite functions and call them however you want, very powerful for quickly testing something and retrying without having to set up the trace all over again.

Tip: Inside of the script shell (-> ) you can run %reload to re-run your script if you changed it without restarting the app. This can be useful for quick iteration where hooking as quickly as possible doesn't matter.

SSL Pinning

Some applications, for the sake of security, implement extra checks to try and prevent them from being reverse engineered. One of these checks is to see if any unexpected certificates are used for the HTTPS communication, like configured in Install Certificate Authority (HTTPS). Luckily, all of this detection happens on-device, so we can change the application's behavior slightly to bypass such checks and debug normally.

Download and run the following script and your app will likely magically be HTTPS-interceptable again. It implements function overrides for many built-in ways to verify certificates.

Calling Java functions

One of the most basic but useful features is calling Java functions and methods from within a script. This can be to automate something that's hard to recreate outside of the app.

Firstly, Java.perform() is called to hook into the JVM. It takes a function as its first argument which now has access to Java classes with Java.use(). You can instantiate classes by calling .$new() on them with any arguments, then call methods. For static classes you can immediately call them on the class object itself. Even if they're private!

Example

Java.perform(function () {
  var MathUtils = Java.use("com.google.android.material.math.MathUtils");
  // Calling a static function
  console.log(MathUtils.dist(0, 0, 1, 1));  // 1.41421...

  var Dimension = Java.use("androidx.constraintlayout.core.state.Dimension");
  // Constructing an object, then calling a method
  var dimension = Dimension.$new();
  console.log(dimension.getValue());
});

Overwriting Java functions

Another useful idea is overwriting existing functions that then get called by the app. This is done by assigning their .implementation property to a custom function that takes the same arguments as the regular method/function. Then returning a value here would also return it in the Java-world.

Below is an example that in addition to the above uses overload() to find the specific onCreate method that uses a Bundle argument. It does so on the MainActivity class of the app, essentially overwriting its initializer. You can call the regular method again with this.onCreate(bundle). The use of this specific snippet is hooking the MainActivity.onCreate method when it's complete so that you can call any other methods on it afterward via this.

Get MainActivity instance

Java.perform(function () {
  // Get MainActivity class
  var MainActivity = Java.use("com.example.app.MainActivity");
  // Overwrite the `.onCreate(Bundle)` method
  MainActivity.onCreate.overload("android.os.Bundle").implementation = function (bundle) {
    console.log("onCreate called");
    this.onCreate(bundle);  // Call original function

    // From here on, `this` refers to the `MainActivity` instance
    console.log(this.win());
  }
});

And another one to overwrite a return value:

MainActivity.check.implementation = function (input) {
    console.log("Input:", input);
    return true;  // Always return true instead of performing a "check"
}
